Avery's Moes ZigBee Smart RF433 Curtain Switch Module
- Free worldwide shipping
Enhance the intelligence of your home with Avery's Moes ZigBee Smart RF433 Curtain Switch Module. Designed for use with motorized roller shutter blinds, this module offers seamless integration with your smart home ecosystem, including Smart Life App, Alexa, and Google Home.
Specifications:
- Product Type: ZigBee+RF Curtain Module
- Voltage: 90-250V AC
- Current: 2A
- Max. Power: 500W(250V)
- Wireless Protocol: ZigBee 3.0
- Operation Temperature: -10ºC - +40ºC
- Case Temperature Tc: +80ºC (Max.)
- Operation Range: ≤ 200 m
- Dimensions (WxDxH): 52x47x18 mm
- IP Rating: IP20
- Warranty: 1 year
- Weight/Pcs: 56g
- Weight/Carton: 15.2kg
- Size/Carton: 36.5x28x28.5cm
Features:
-
Convenient Operation: Substitute for a new smart roller blinds switch to work with your traditional curtain switch, enabling manual stop function by pressing the traditional curtain switch once after switching up/down.
-
RF and Wireless Remote Control: Remotely control connected appliances via the Smart Life App or remote control switch with encoding 1527. Supports 2.4 b/g/n Networks and does not require a separate Tuya ZigBee Gateway.
-

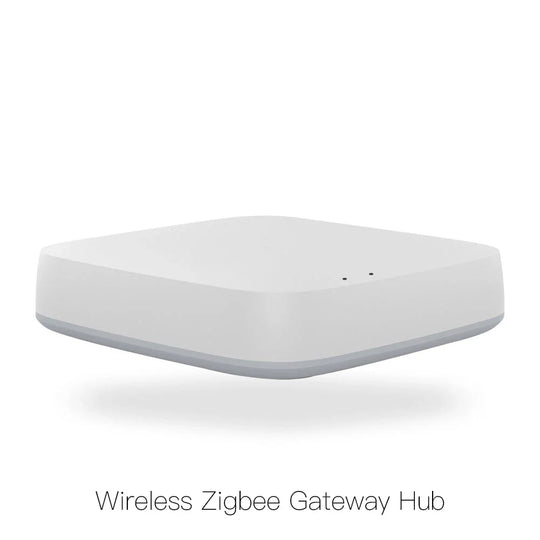

Hands-free Voice Control: Requires Tuya ZigBee hub for Smart Life App configuration and works with Amazon Alexa and Google Home for easy voice control.
-
Timer Setting and Family Sharing: Control roller blinds intelligently with timer features on the App, including schedules timing, countdown timing, and loop timing. Share devices with family members for joint control.
Upgrade your home automation system with Avery's Moes ZigBee Smart RF433 Curtain Switch Module and experience the convenience of intelligent curtain control in your daily life.
ZigBee DIY RF433 Smart Curtain Switch Module for Electric Motorized Roller Blinds Shutter Motor 2MQTT Available Smart Life/Tuya APP RF433 Remote Control,Compatible with Alexa Echo and Google Home
By Moes
Prosuct Features:
1.Use with Much More Convenience with stop function on traditional switch:A really good substitution for one more new smart roller blinds switch to work with your traditional curtain switch to realize intelligence.Press your traditional curtain switch once after switch to up/down (on the same button)to manually stop your curtains easily.Also,it can be connected with your chain roller blinds shutter or curtain motor to smartly control your curtains.
2.RF and Wireless Remote Control Available:Enable to remotely control your connected appliances on your smart phone wherever you are. 2.4 b/g/n Networks provides the needed connection to the DIY Switch Module with the need of a separate Tuya ZigBee Gateway.(Compatible with Android&iOS for Smart Life and Tuya App.)More importantly,this curtain switch module is built-in RF433 frequency,so it can be controlled with remote control switch with encoding 1527.
3.Hands-free Voice Control with ZigBee Hub Required:Tuya ZigBee hub required for Smart Life App configuration as a whole linkage of your house ZigBee devicesa really good substitution for unstable Wi-Fi;Compatible with Amazon Alexa and Google Home for easy voice control,providing your smart life for controlling roller blinds with much more convenience.
4.Timer Setting and Family Sharing:Take full control of your roller blinds intelligently with the timer feature on your App,which enables to open / close them at a specific time automatically. Automate your home roller blinds via 3 timing types:schedules timing,countdown timing and loop timing.Even device share to your family members to control the connected devices together,support one mobile control more and multiple phones to control one.
· Note before order:

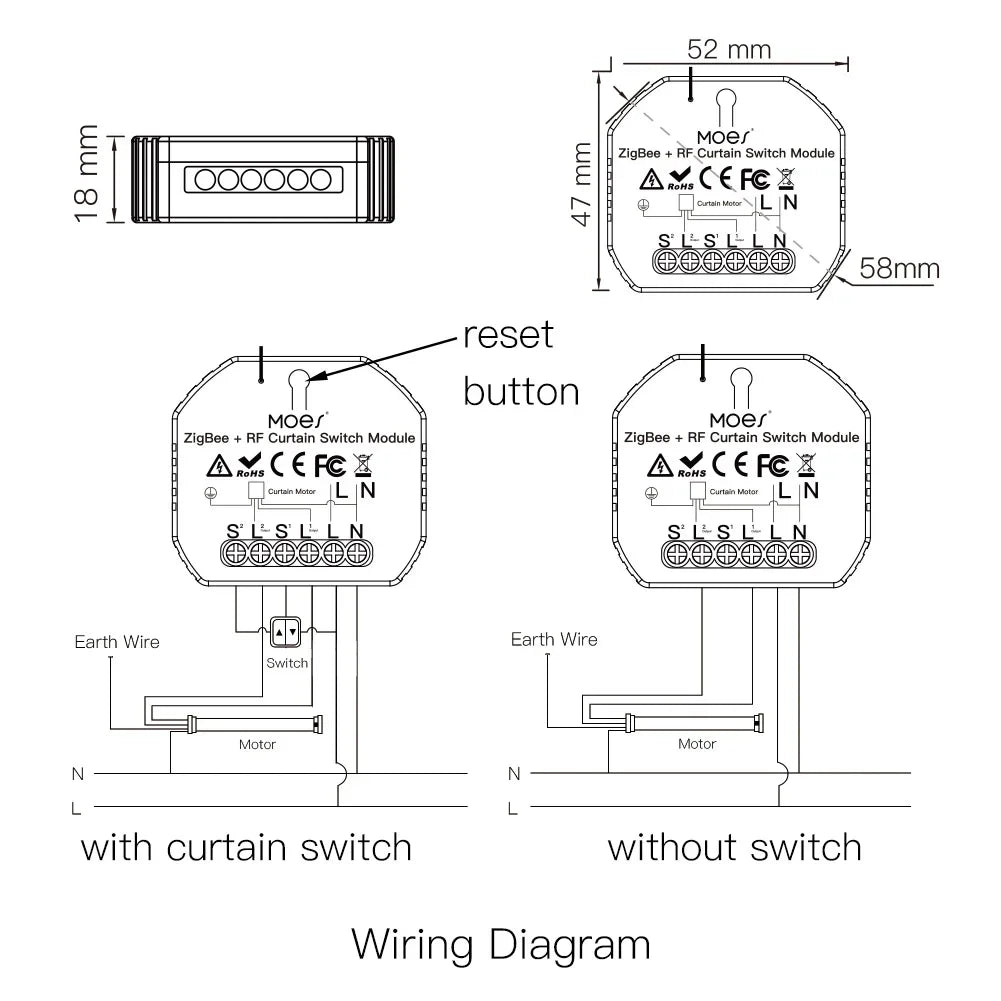

1.Please check your motor is with 4 wires before make your order.(Note:Motor not included,need a separate purchase.)
2.This roller blinds shutter switch module can not work with DC motor.

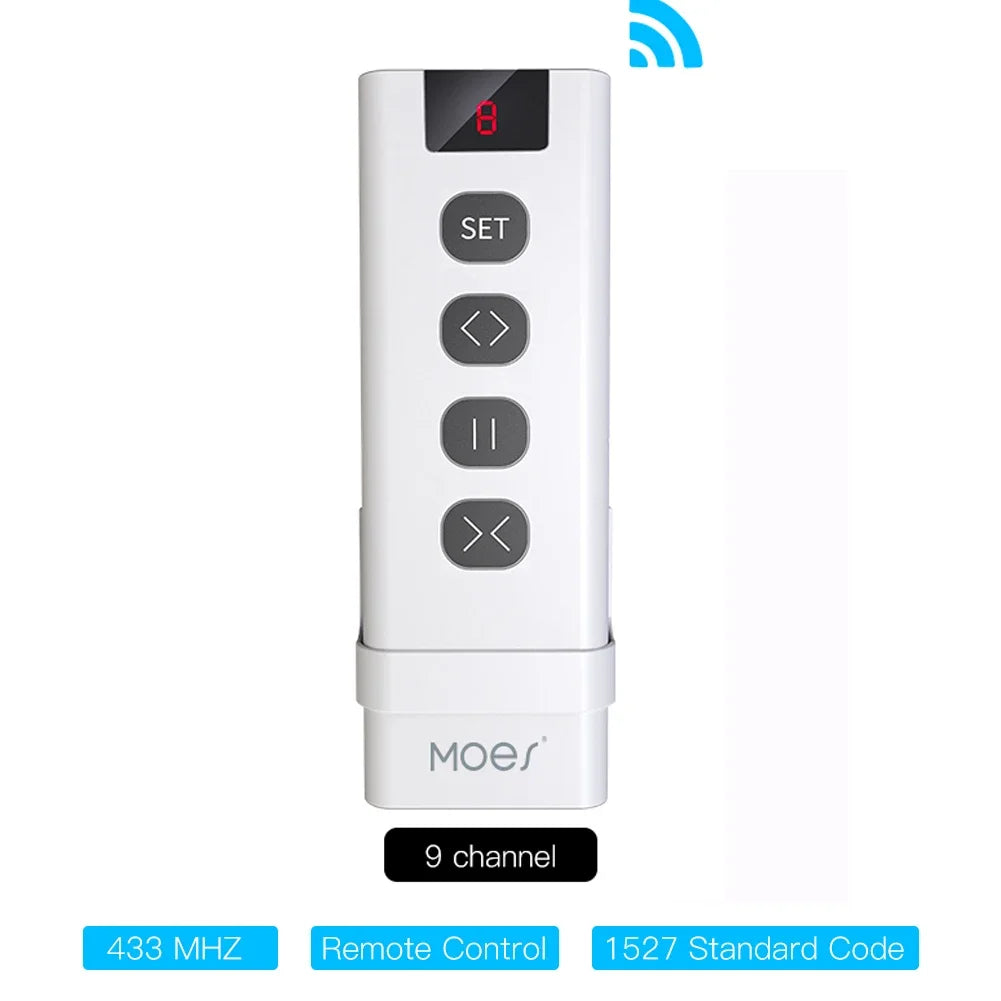

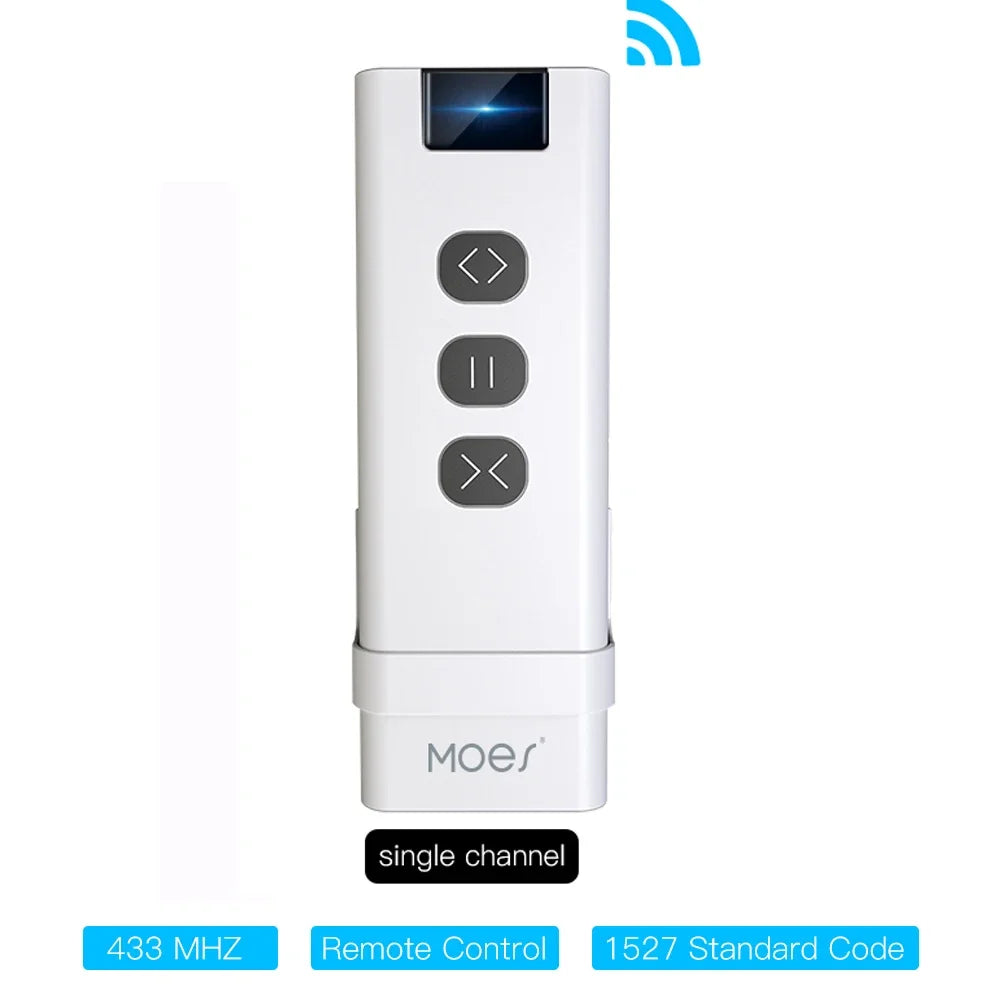

3.Please use this module with RF433 remote control switch(only encoding 1527 required.)
Curtain Calibration Supported in App
Note: calibtration is not suitable well for heavy metal blinds for material restricted
Percentage Adjustable for Your Curtains
Update:
Press the tradtional curtain switch once after switch to up/ down( each button) to stop the curtains
Suitable for chain bllinds and curtain motor

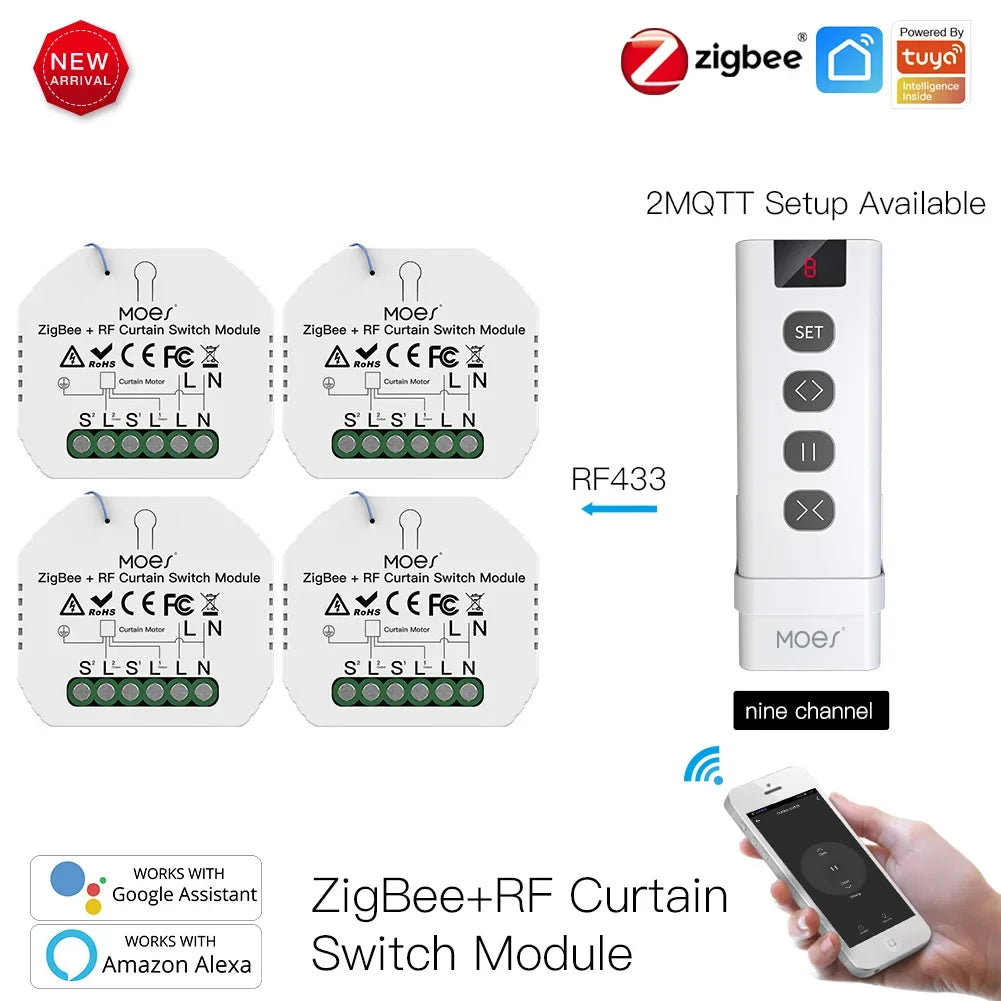

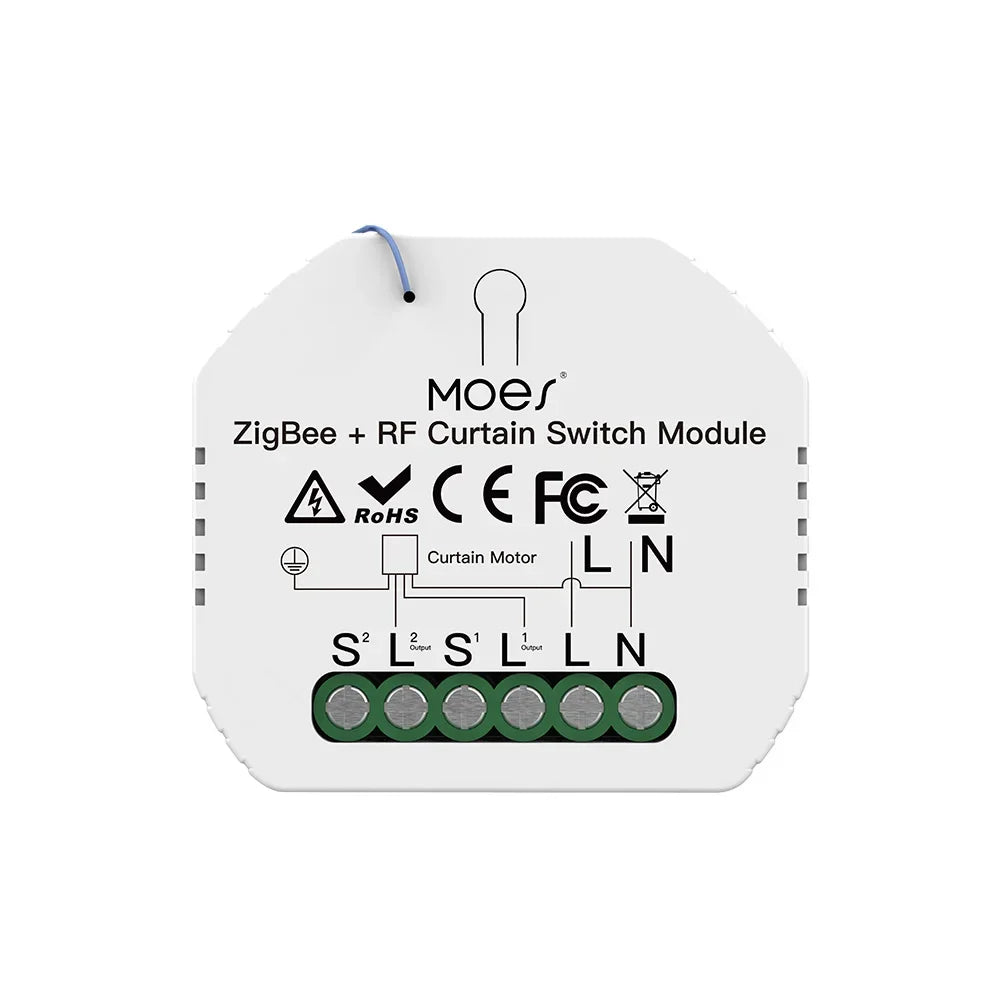

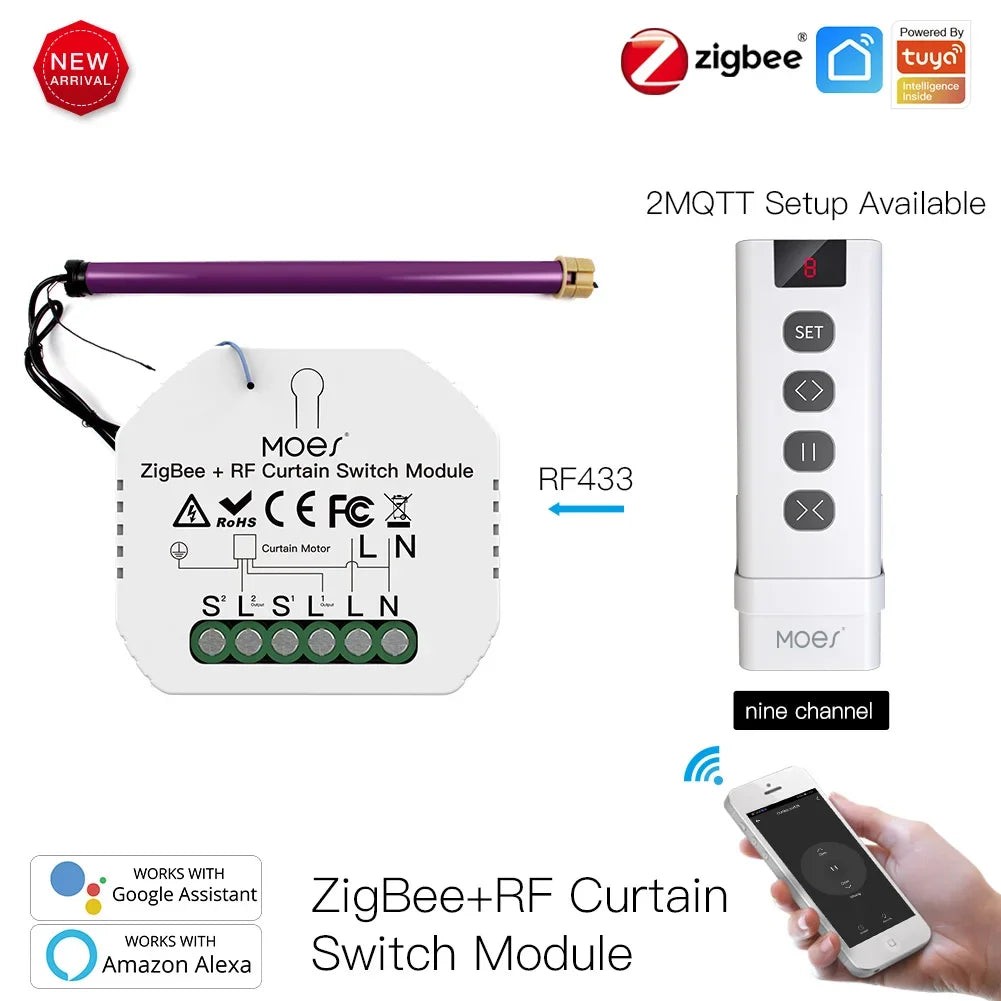

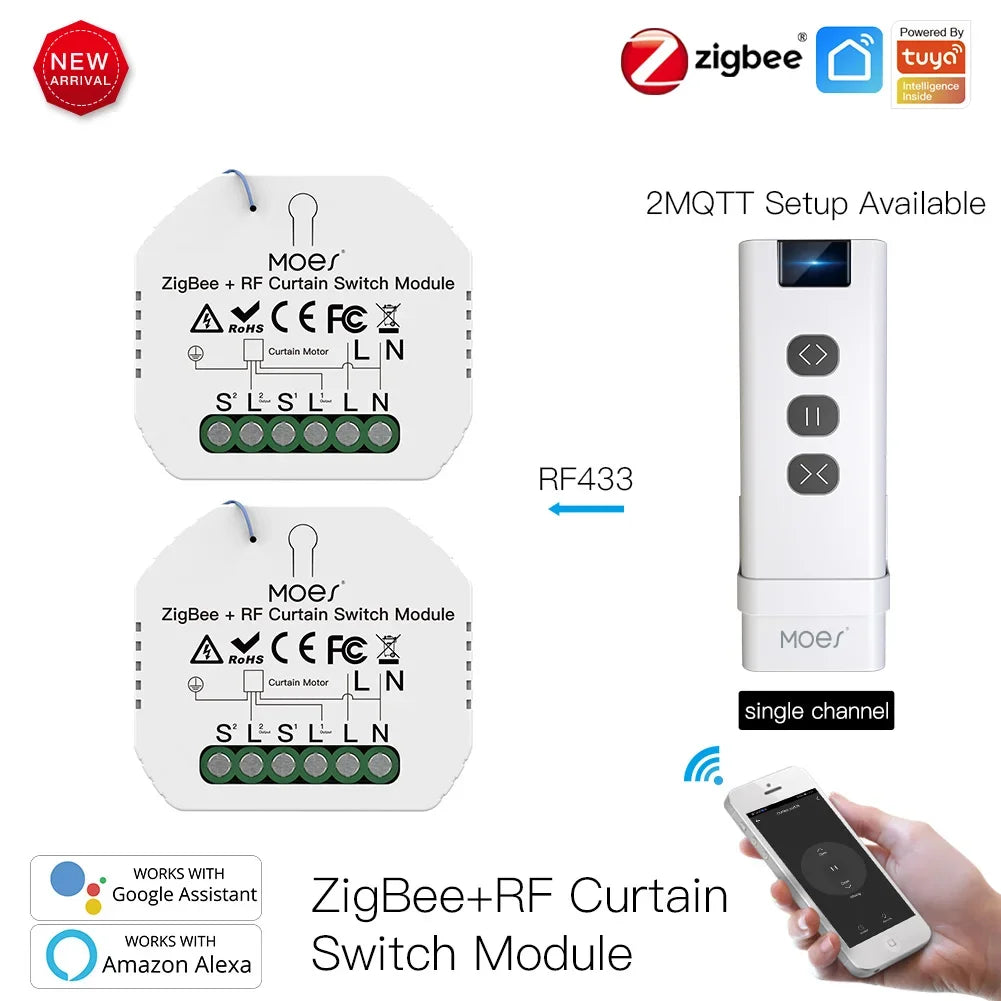

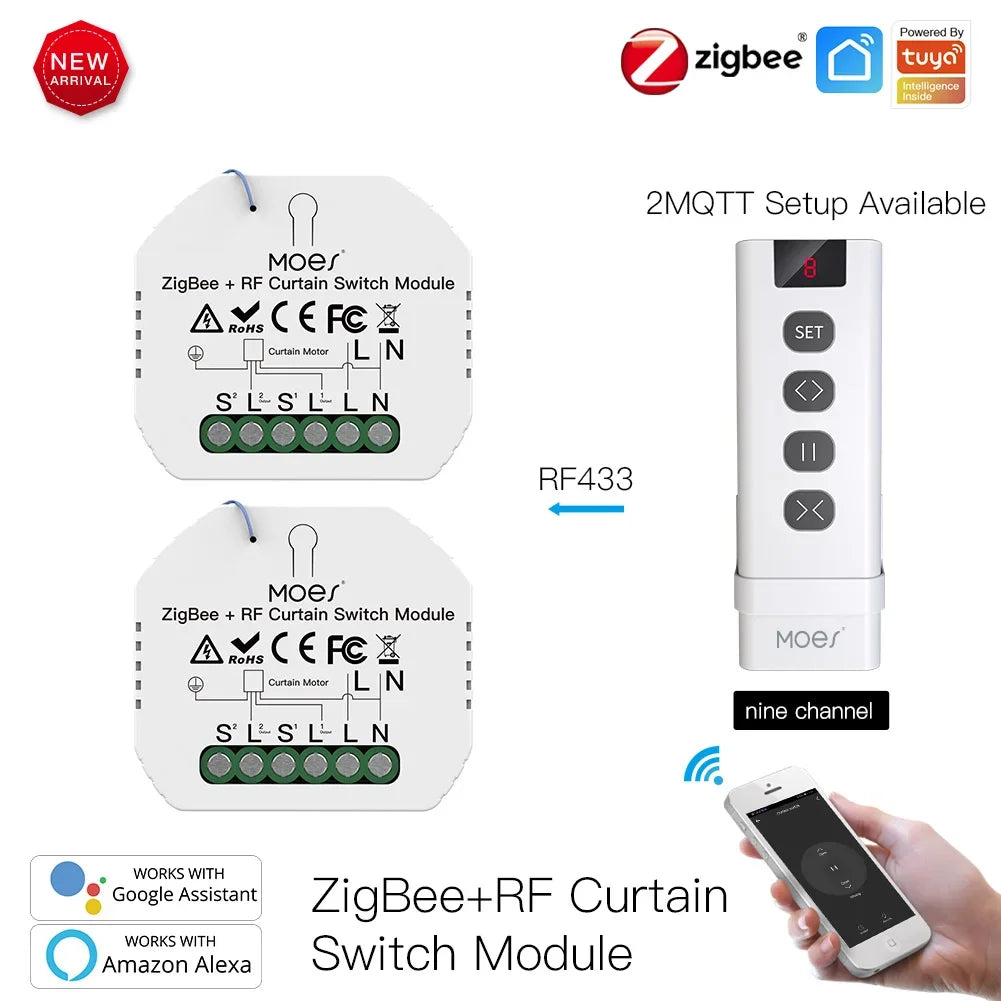

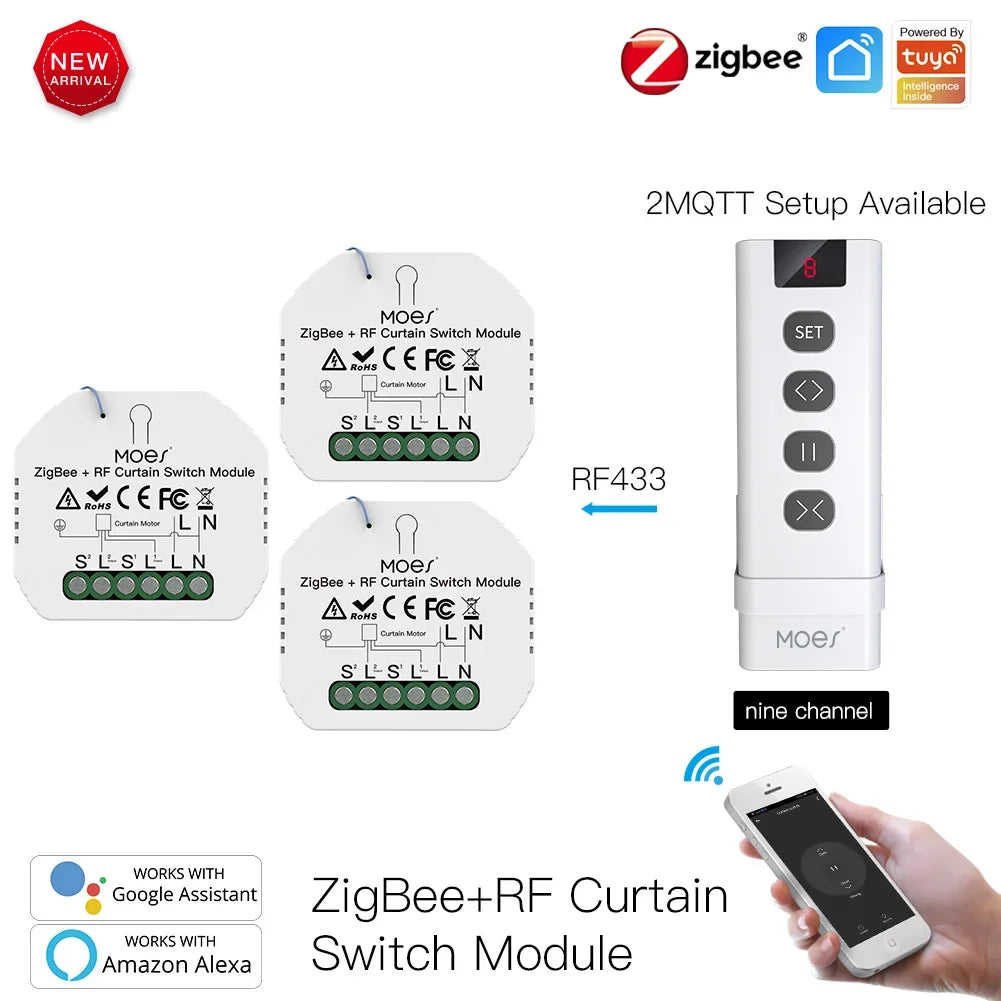

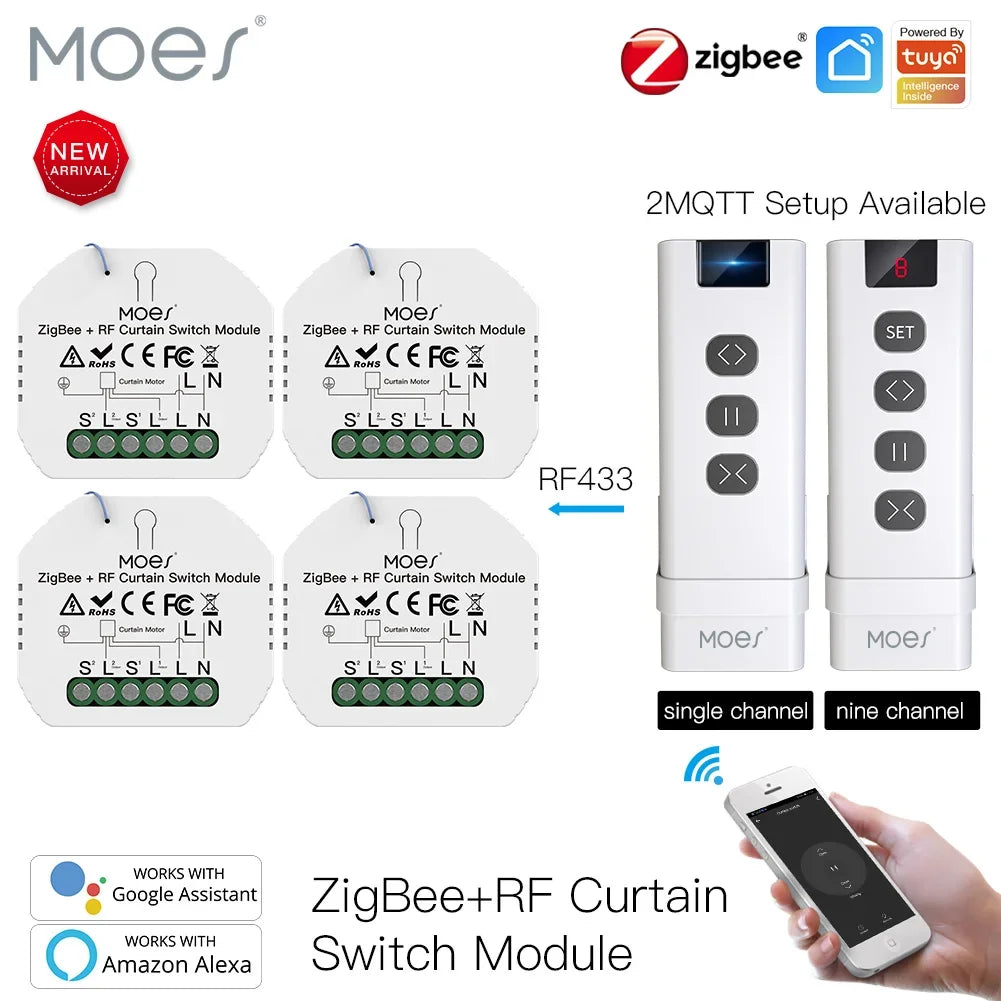

Smart ZigBee+ RF Curtain Switch Module
Intelligently control the device after connecting it to most ZigBee hub,

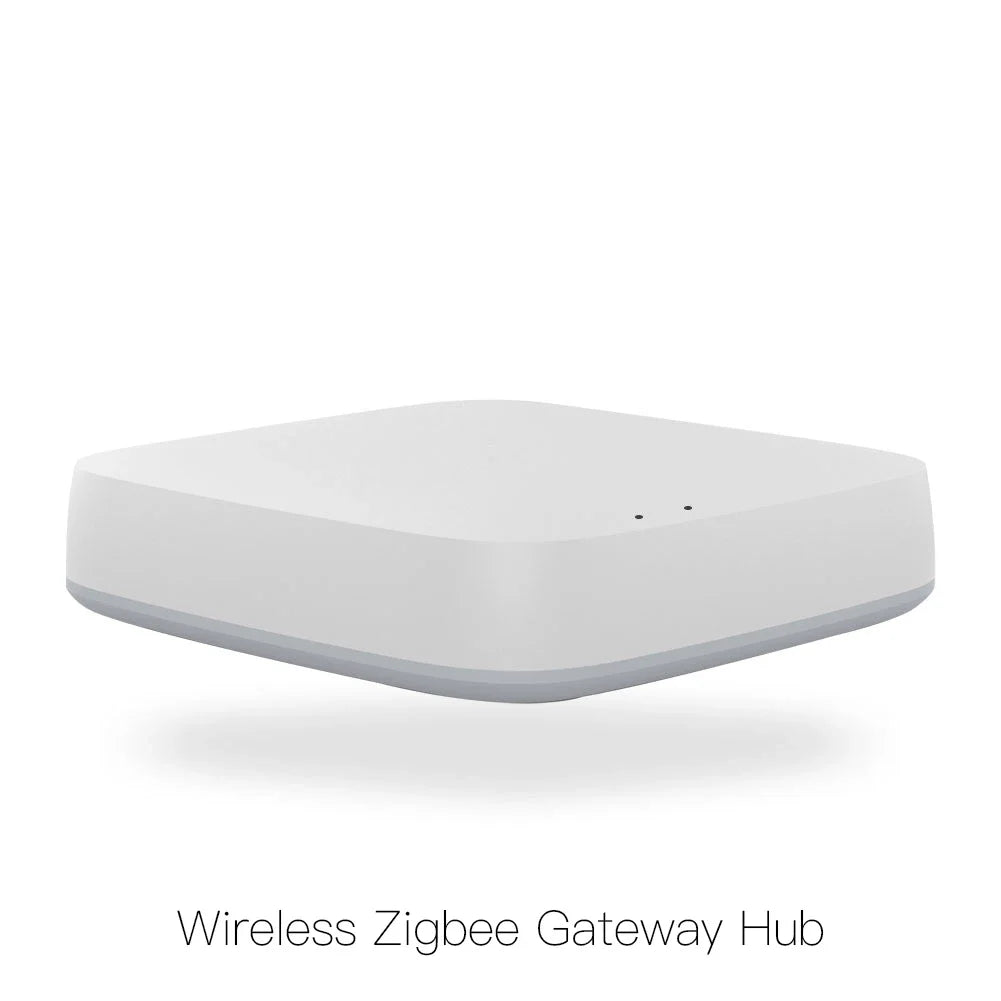

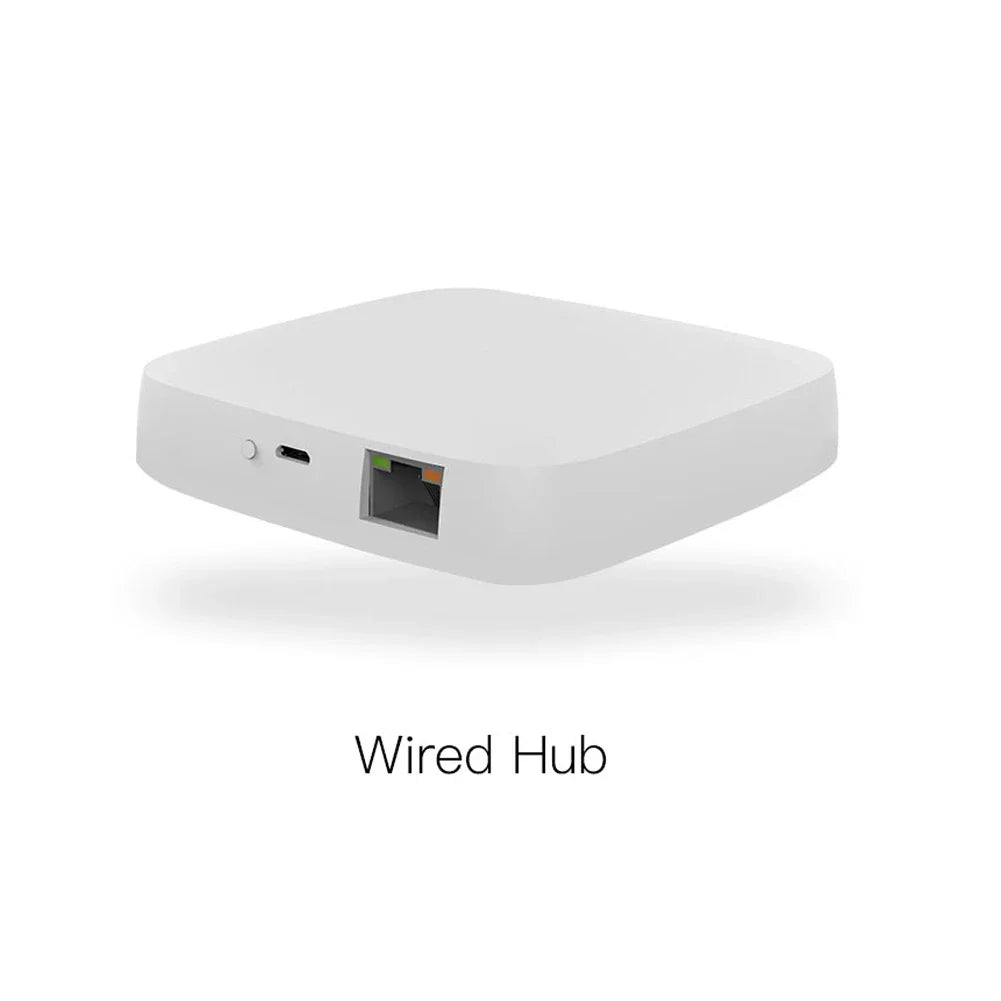

Tuya ZigBee hub required for its much more compatibility with zigbee devices than other hubs

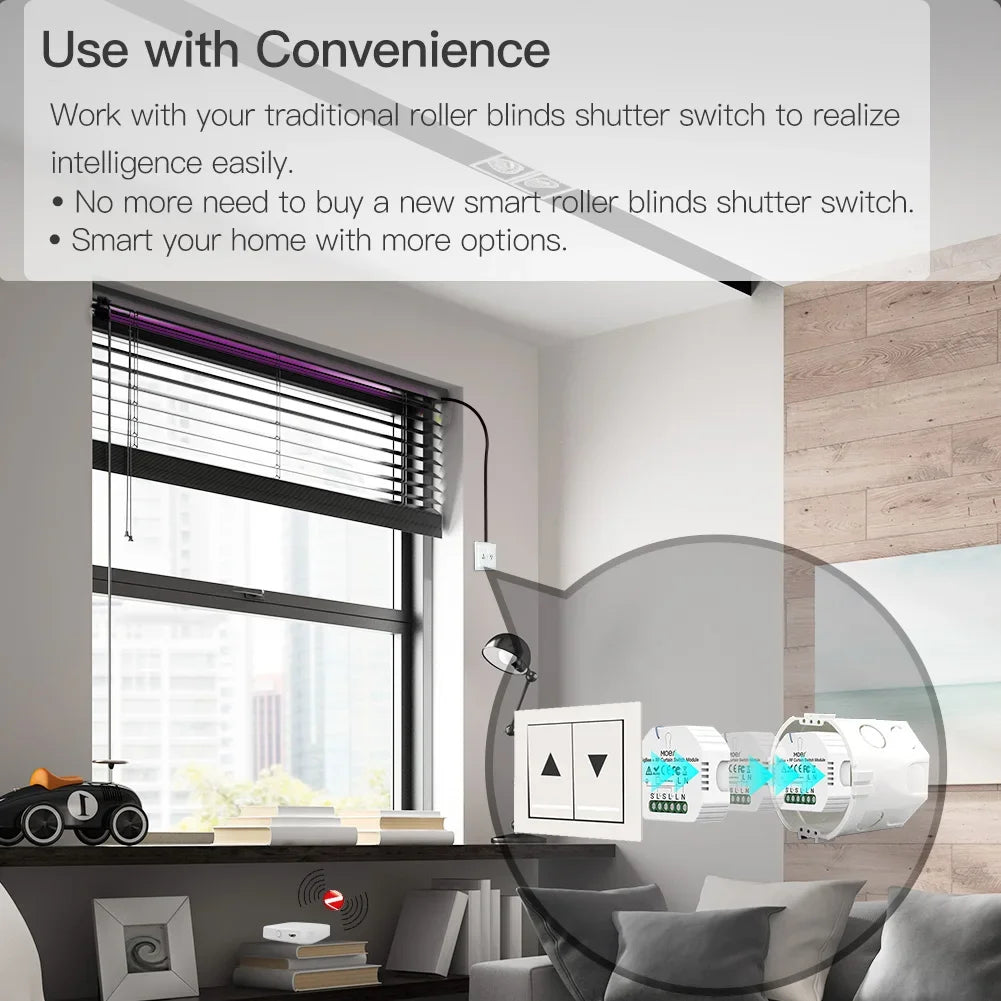

Use with Convenience
Work with traditional roller blinds switch realize intelligence. A really good substitution for one more new smart curtain switch
Hands-free Voice Control
Control your roller blinds with your voice only for maxImum convenlence.
Simply Say ,"Alexa , turn-off the roller blinds "when you are sitting on your sofa

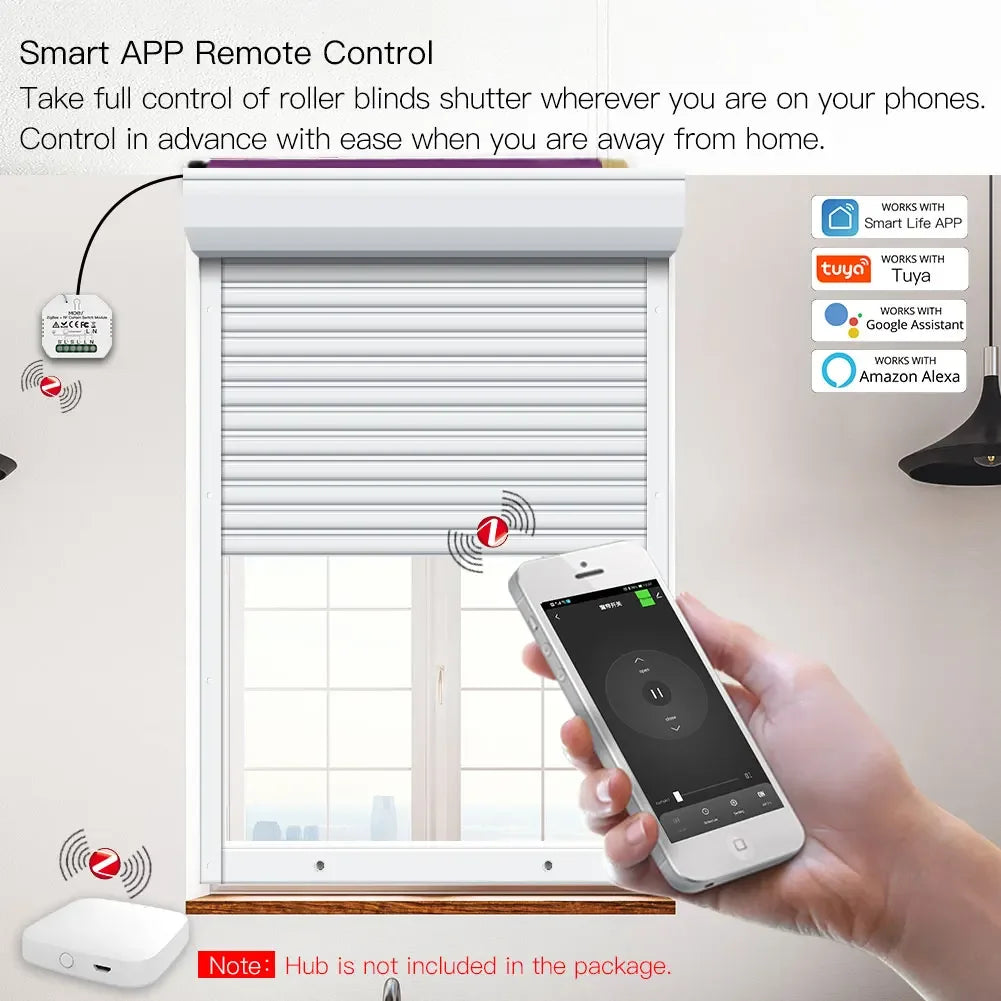

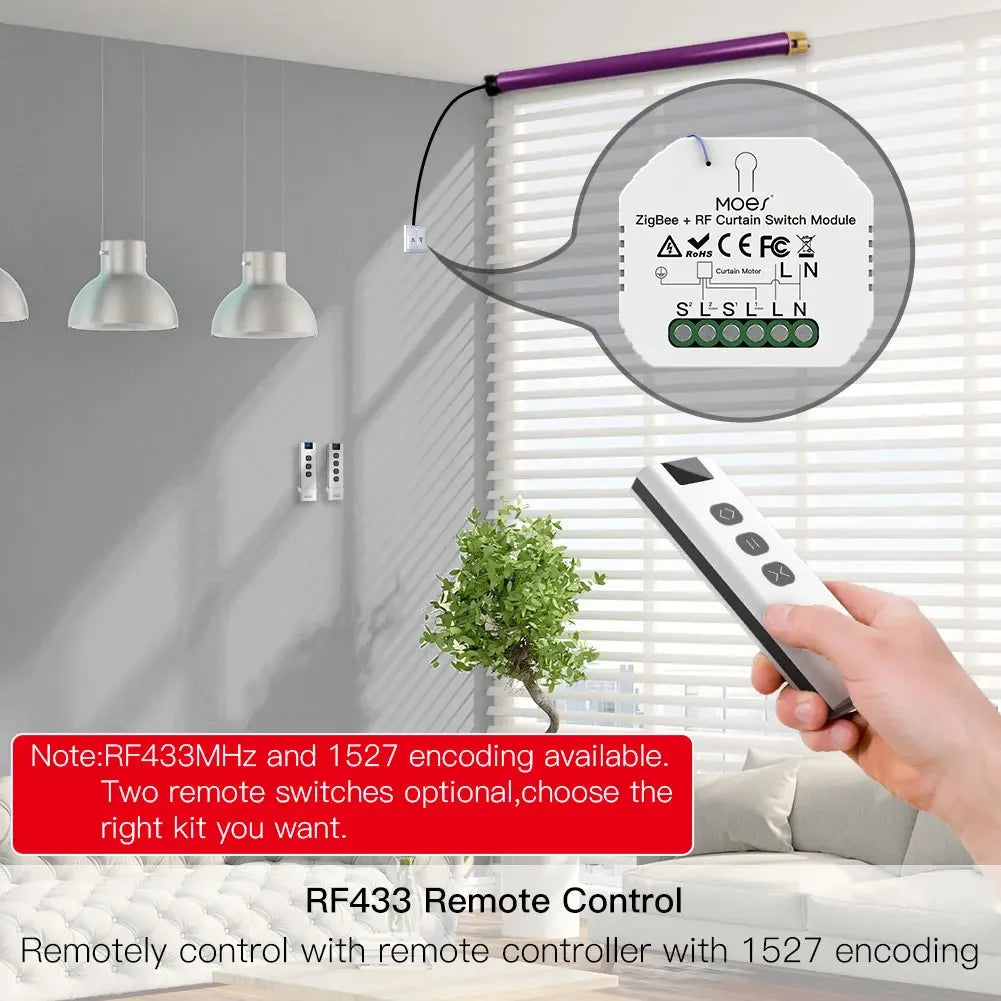

Wireless Remote Control
Take command of your roller blinds by using the mart Life/ Tuya app( or android) anytime from anywhere.
Remotely check whether you have or closed the roller blinds.
Multi-scenario Matching
Match different kinds of curtains such as window blinds/roller blinds/ venetian blinds
Schedules& Countdown timer
Set a schedule to open/ close the roller blinds according to your own timetable. Do not have to
Use a countdown timer open/ close the curtains through your smart phone, min to 6 hours is all
Family Sharing
Share this smart ZigBee curtain module to your family members to share the convenience together
Support one mobile phone to control multiple devices or multiple mobile phones to control one device
Specifications:
Product type: ZigBee+RF Curtain Module
Voltage: 90-250V AC
Current: 2A
Max. Power: 500W(250V)
Wireless Protocol: ZigBee 3.0
Operation temp.: -10ºC - +40ºC
Case temp. Tc: +80ºC (Max.)
Operation range: ≤ 200 m
Dims (WxDxH): 52x47x18 mm
IP rating: IP20
Warranty: 1 year
Weight/Pcs:56g
Weight/Carton:15.2kg
Size/Carton:36.5x28x28.5cm
300PCS/Carton
Package Listing:
ZigBee Curtain Module*1(with mounting clip)
Instruction Manual*1
Remote Control Switch*1
Note:Motor not included,need a separate purchase. Calibtration is not suitable well for heavy metal blinds for material restricted.
